Ref : RP04 GB Springs

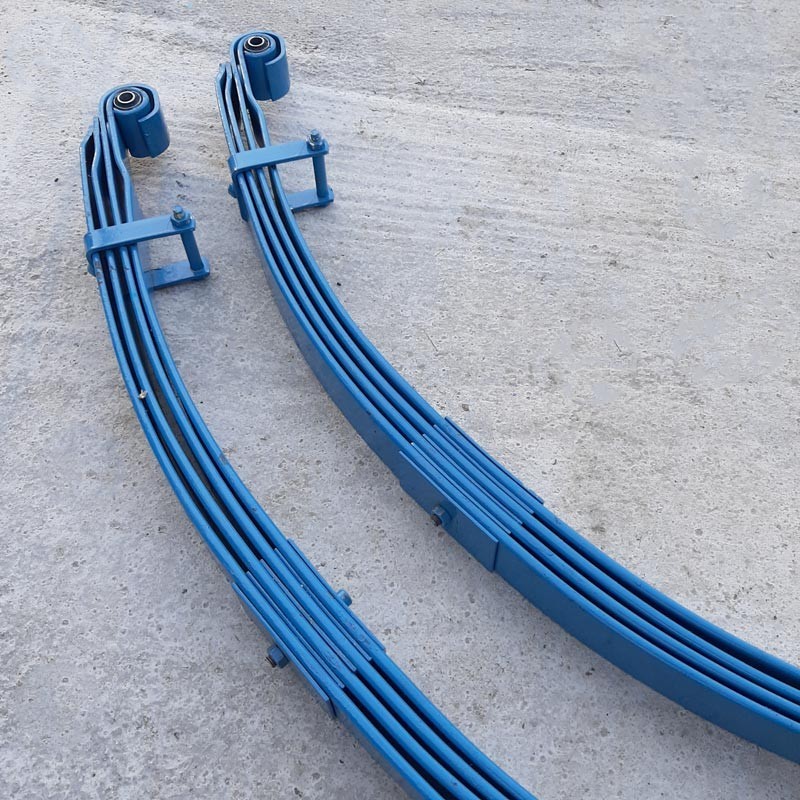

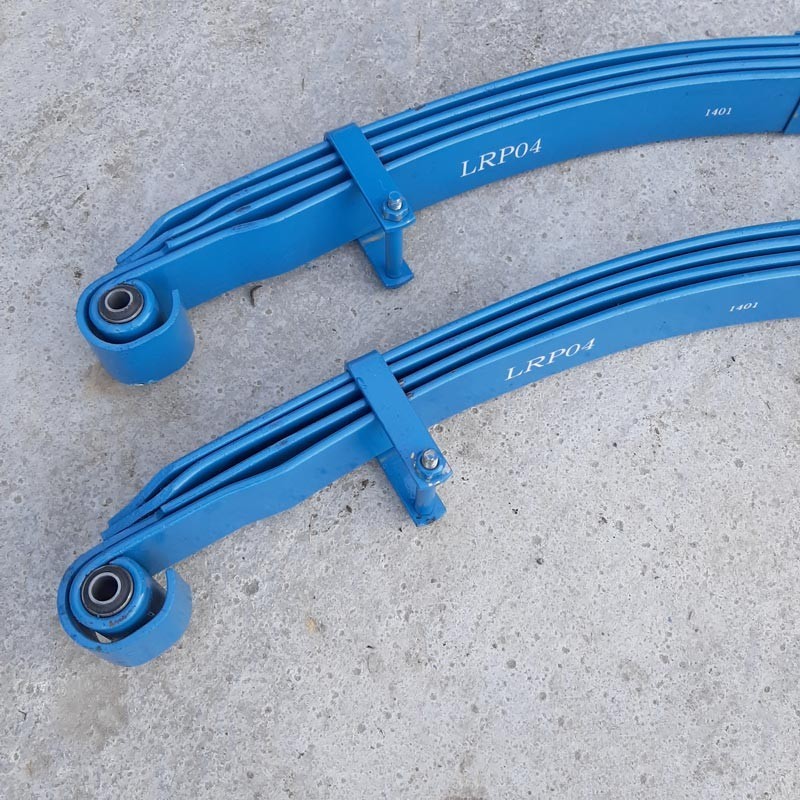

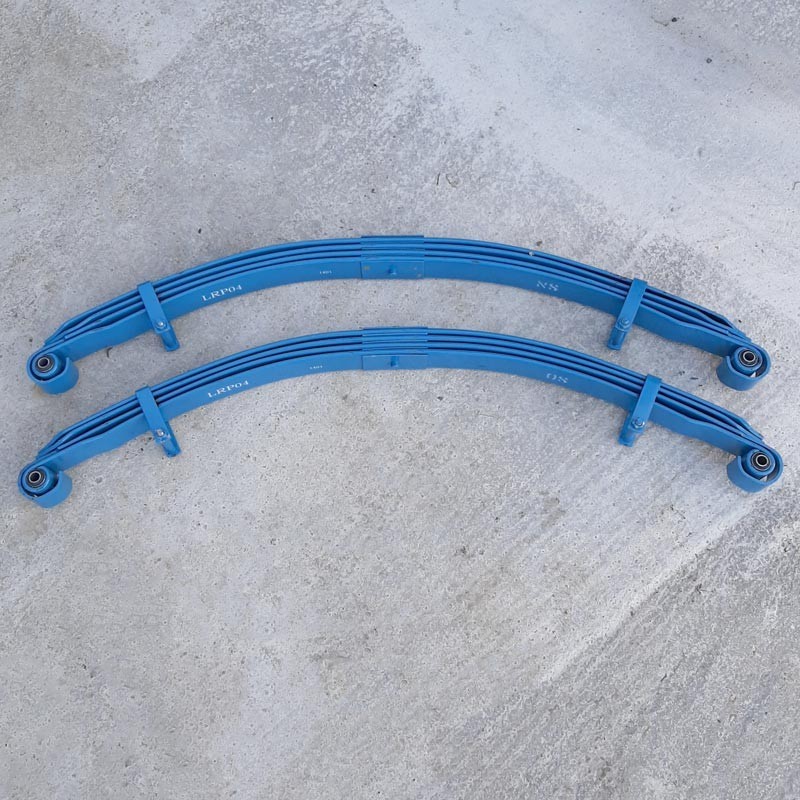

Rear parabolics - 4 leaf

In stock
Shipped in 1 semaine

Suitable for Serie 2/3 88 and 109" hard top, usually loaded, and pulling heavy trailers. This mounting is not recommended on a short chassis 88", unless the vehicle will be heavily loaded permanently. On a long chassis 109", this mounting is perfect for a 109 hard top, 3 doors, which carries equipment and pulls the trailers in a reasonable way.  This mounting is also perfect for a 109 Station Wagon light loaded. Price for the pair. High quality springs, made in England, with rubber silent blocks mounted. Supplied with 4 Ubolt and 8 nuts. The sprung load capacity for our four leaf rears is 1620kgs per axle.
The parabolic blades provide more comfort and deflections in 4x4. Enhances +/- 3cm compared to the original blades.
It is advisable to replace your shock absorbers with extended shock absorbers.
Note 1The Off side spring is mounted on the side where the transfer box and axle differential sit which on a left hand drive vehicle is still the right hand side of the vehicle
Note 2 : If you want the maximum comfort on a 109 3 door softop that is never loaded, you can remove the leaf spring No. 3 from each side. The load capacity will be 1300kg on the rear axle, instead of 1190kg if the RP03 3-leafs kit was purchased directly.

  • Weight : 43.00 kg
  • Equivalent reference(s) : DA1212
  • Position : Rear
  • Email alert : active
  • Packaging : Pair
Pre-orderable product
Shipping

Delivery date

Shipping fees Free delivery on orders over 100€
€644.20
Tax included
Quantity
